Our Machinery Ledger
Industry-leading CNC machines, EDM systems, and inspection equipment — maintained to the highest standards for uncompromising precision.

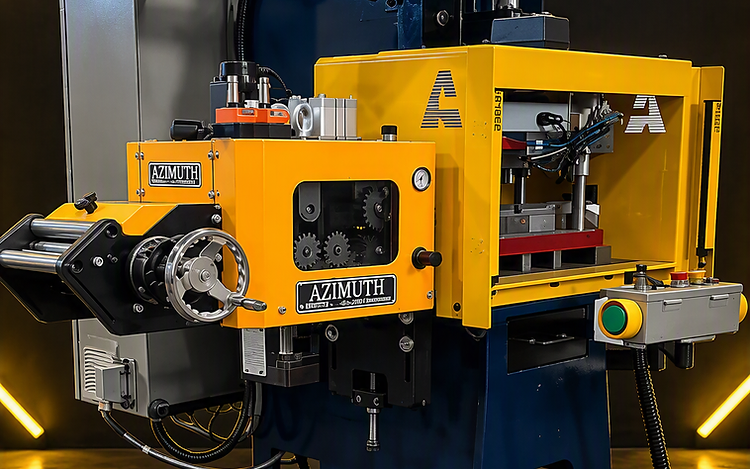

Azimuth Servo Punch Press
The S-Series C-Frame Servo Press combines six models ranging from 6 to 33 tons, offering precision, speed, and reliable servo-driven performance for stamping, forming, assembly, and coining applications. With belt-driven servo motors, variable speed and precise position control, each model is built for consistent operation and compact shop-floor use.

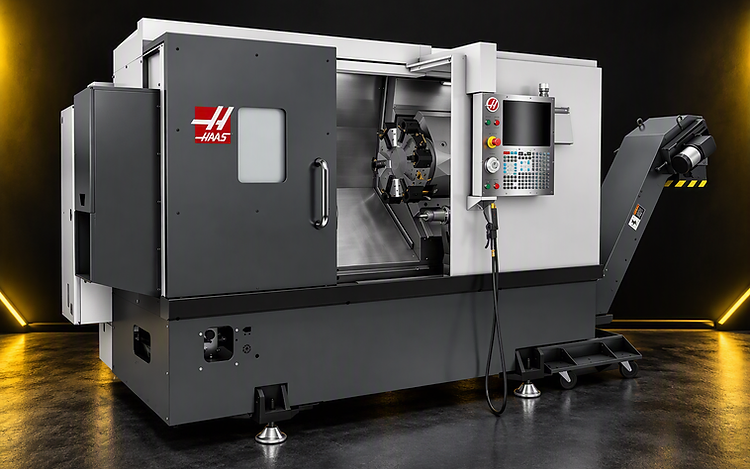

HAAS ST-20Y
3-axis CNC turning center (X/Y/Z) with live tooling for off-center milling, drilling, and tapping in a single setup.
Max Turning Diameter: 15.0" Max Turning Length: 18" Spindle Speed: 4,000 RPM Spindle Power: 25 hp Bar Capacity: 2.5" Y-Axis Travel: 3.5"

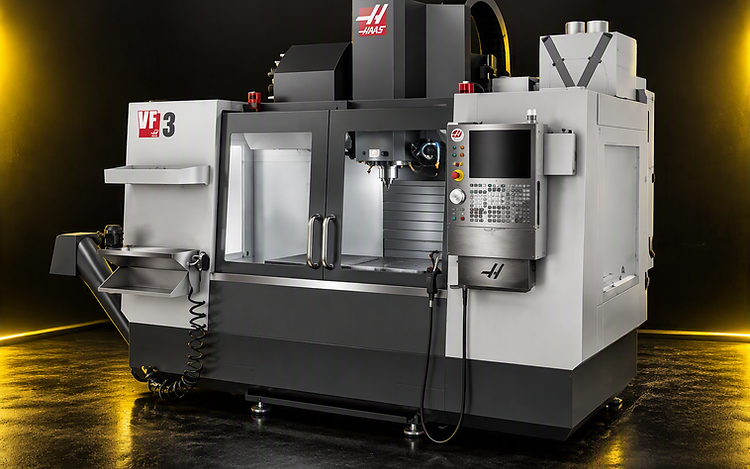

HAAS VF-3
4-axis vertical machining center with a rigid, compact work envelope for precision milling of complex parts in a single setup.
Travels (X/Y/Z): 30" x 16" x 20" 4th-Axis (A): ±120° Spindle Speed: 8,100 RPM Spindle Power: 30 hp Tool Capacity: 20+1 (40-taper) Rapid Traverse: 1,400 IPM

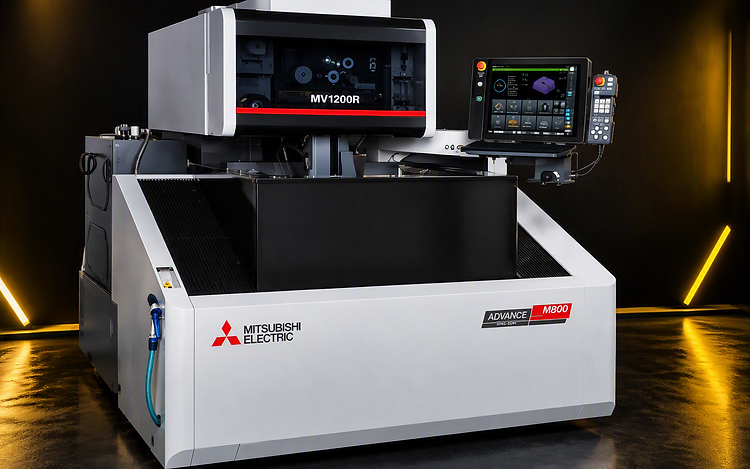

Mitsubishi MV1200R
High-precision wire EDM system capable of cutting complex geometries in hardened materials with exceptional accuracy and surface finish.
Work Area: 13.8" x 9.8" (350 x 250 mm) Max Workpiece Weight: 1,500 lbs Wire Diameter: 0.004" – 0.012" Surface Finish: 32 Ra Taper Capability: ±30°

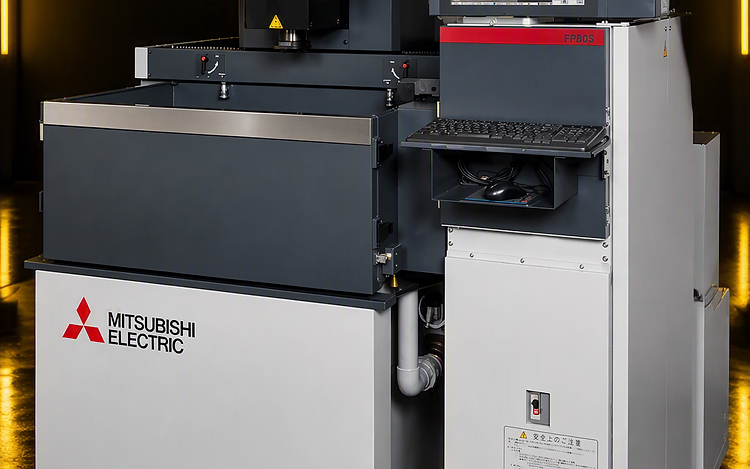

Mitsubishi EA8S Sinker EDM
Sinker EDM creates complex cavities and precision internal features using controlled electrical discharges and a shaped electrode. The non-contact process is ideal for hardened conductive materials, deep details, and geometries that are difficult to produce through conventional machining

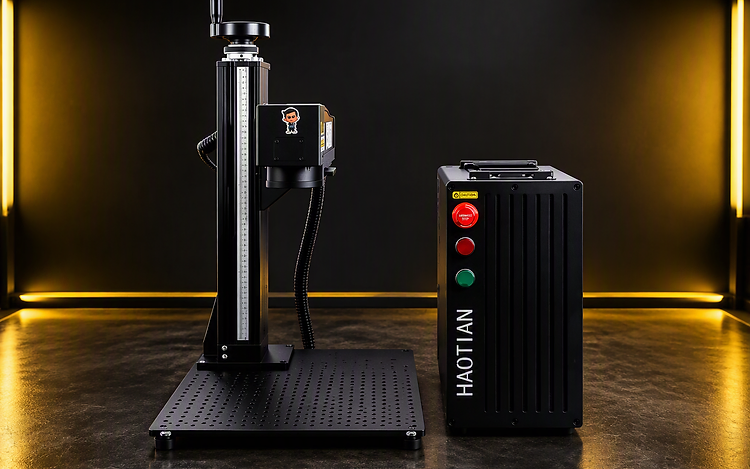

Haotian 100W Laser System
100 W Fiber laser marking system for permanent, high-contrast marking on metal components.
Laser Type: Fiber Laser Wavelength: 1064 nm Marking Area: 120 x 120 mm Max Power: 20W Scan Speed: 12,000 mm/s

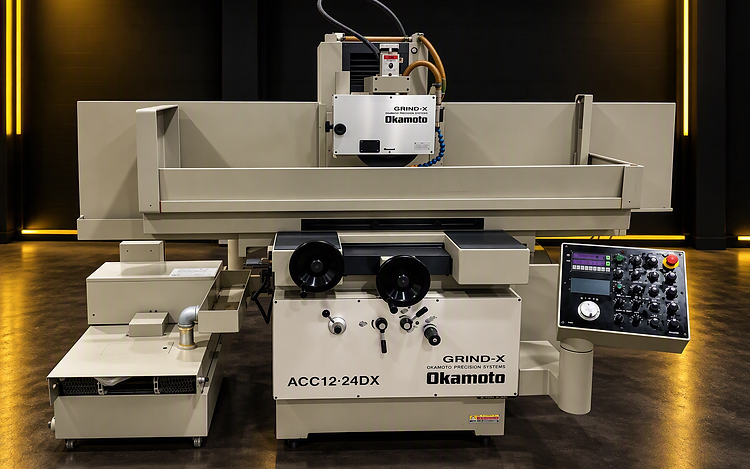

Okamoto Surface Grinding Table
Our precision surface grinding capabilities produce flat, smooth, and accurate surfaces with tight dimensional control and consistent finishes.
Need a specific capability?
Our equipment is constantly evolving. Submit an RFQ and we'll confirm our capabilities for your project.
